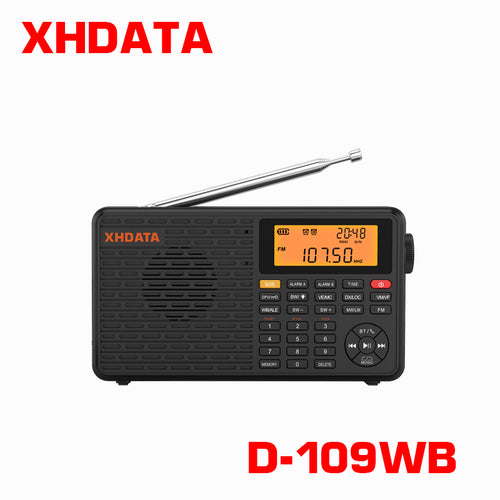

2023 NEW XHDATA D-109WB FM ST/MW/LW/SW/NOAA Global Band Radio

XHDATA D-109WB is a portable multi-band receiver that can receive FM, LW, MW, NOAA Weather and SW frequency bands with good reception results. It uses 40mm speakers for loud, rich, crisp, dynamic and distortion-free speaker sound in stereo. D-109WB is designed with emergency help functions, including sound and light alarms. When you encounter danger or feel unwell, press the SOS button to get timely rescue. In addition, the function of quickly receiving weather alerts is also designed. It is convenient for you to know the local weather conditions anytime and anywhere. At the same time, reception is optimized, and DX remote and LOC local proximity reception modes can be switched at will.

Key Features:

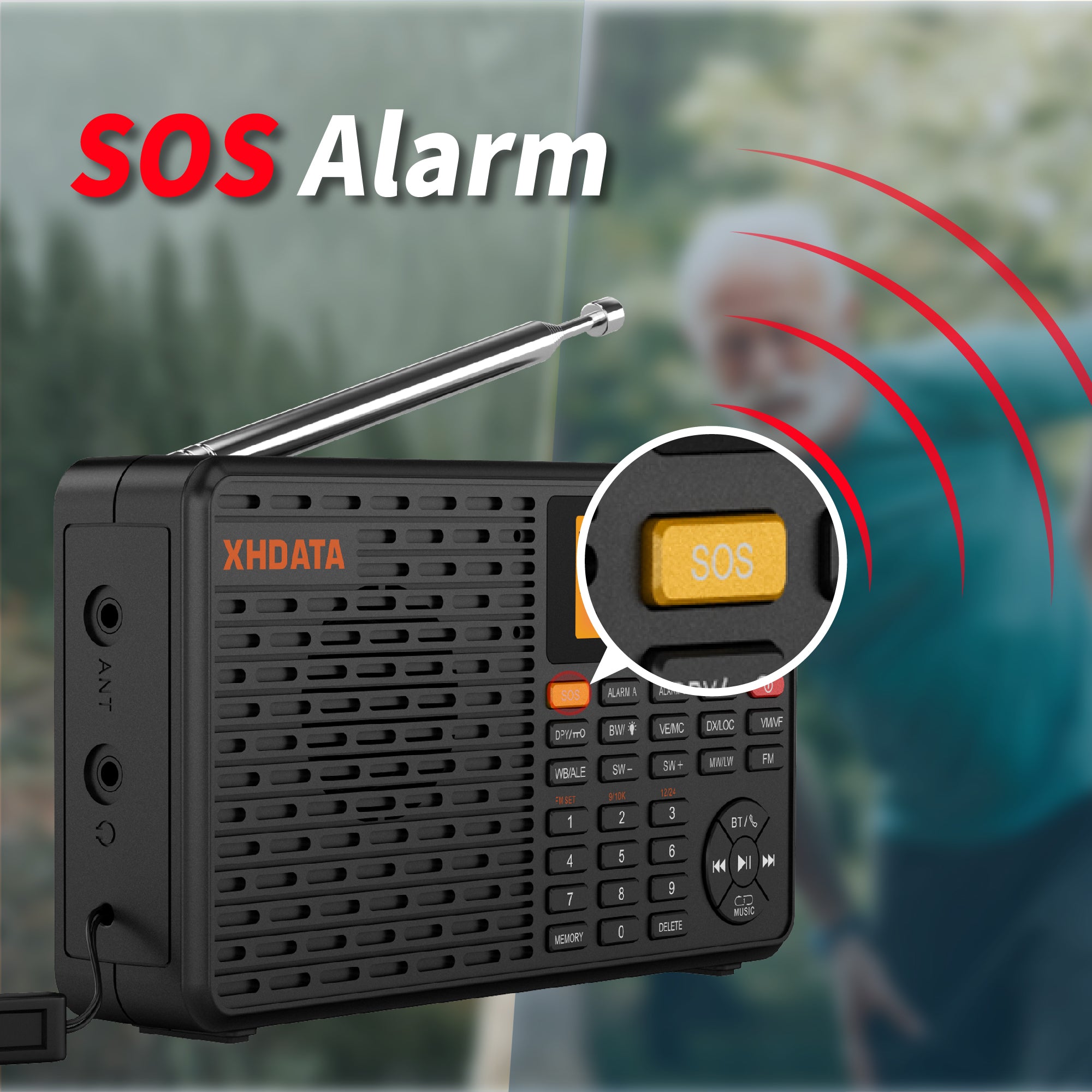

•  SOS Emergency Distress Sound and Light Alarm:In case of emergencies, activate the distress alarm to attract attention and seek help.

•  Wireless Cell Phone Call: Connect your wireless cell phone to the radio for convenient hands-free communication.
• Key Lock/Display Switch: Easily lock the keys and switch the display for enhanced usability.
•  Manual Tuning and Automatic Frequency Browsing: Fine-tune your radio frequency manually or use the automatic browsing mode for quick scanning.
• AM Bandwidth Switching and LCD Backlight: Adjust the AM bandwidth and enjoy the convenience of a permanently on LCD backlight with intelligent control.
• Voice/Music Switch: Seamlessly switch between voice and music modes for personalized listening experience.
•  DX Remote and LOC Local Proximity Receive Mode Switching: Choose between DX remote and LOC local proximity receive modes for optimized reception.

Tuning Methods

• Direct input
• Auto scan
• Manual tuning

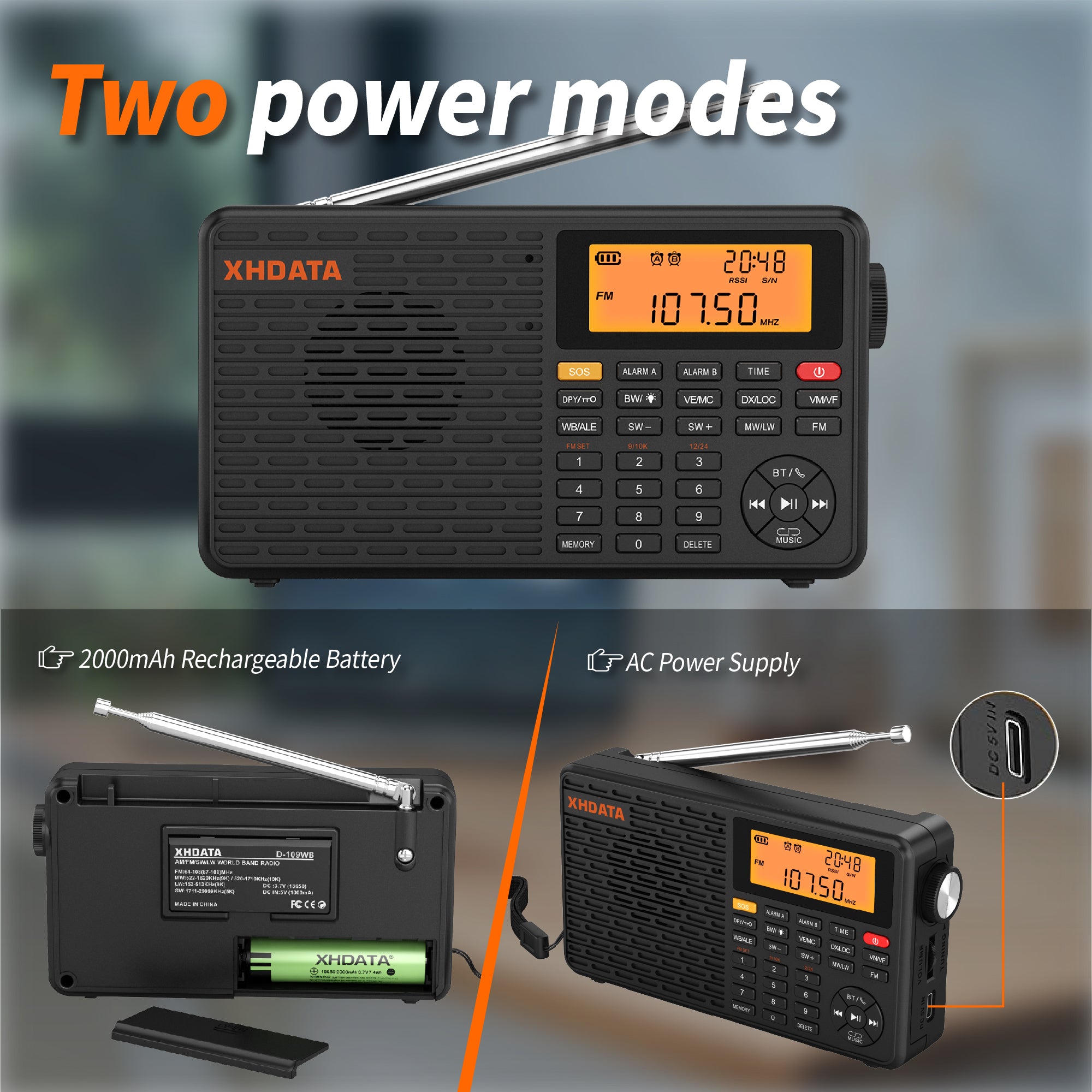

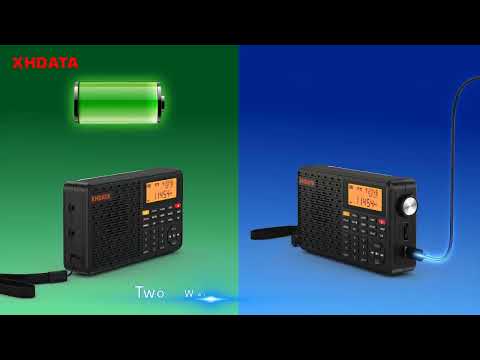

 Power / Charging

• Battery power:18650 battery
• DC: 3.7V (18650) 2000mAh
• DC5V IN: DC5V / 1000mA

Specification

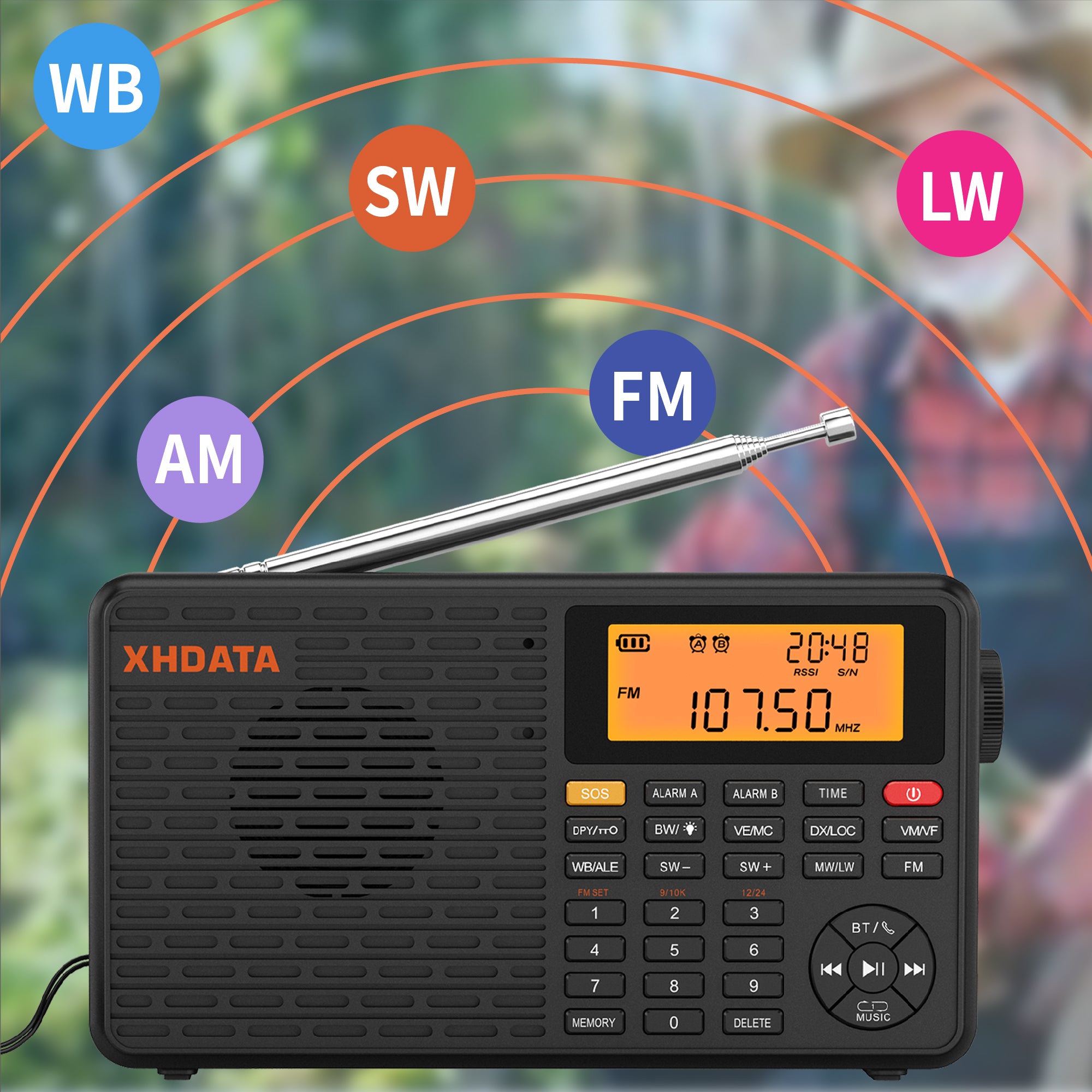

• Frequency range
  • FM: 64-108 MHz/76-108 MHz/87-108 MHz / 87.5-108 MHz (100 KHz/10 KHz Tuning Steps)
  • LW: 153-513KHz (9K/1K Tuning Steps)
  • AM: 522-1620KHz (9K/1K Steps) / 520-1710KHz (10K/1K Steps)
  • SW: 1711-29999KHz (5K/1K Steps)

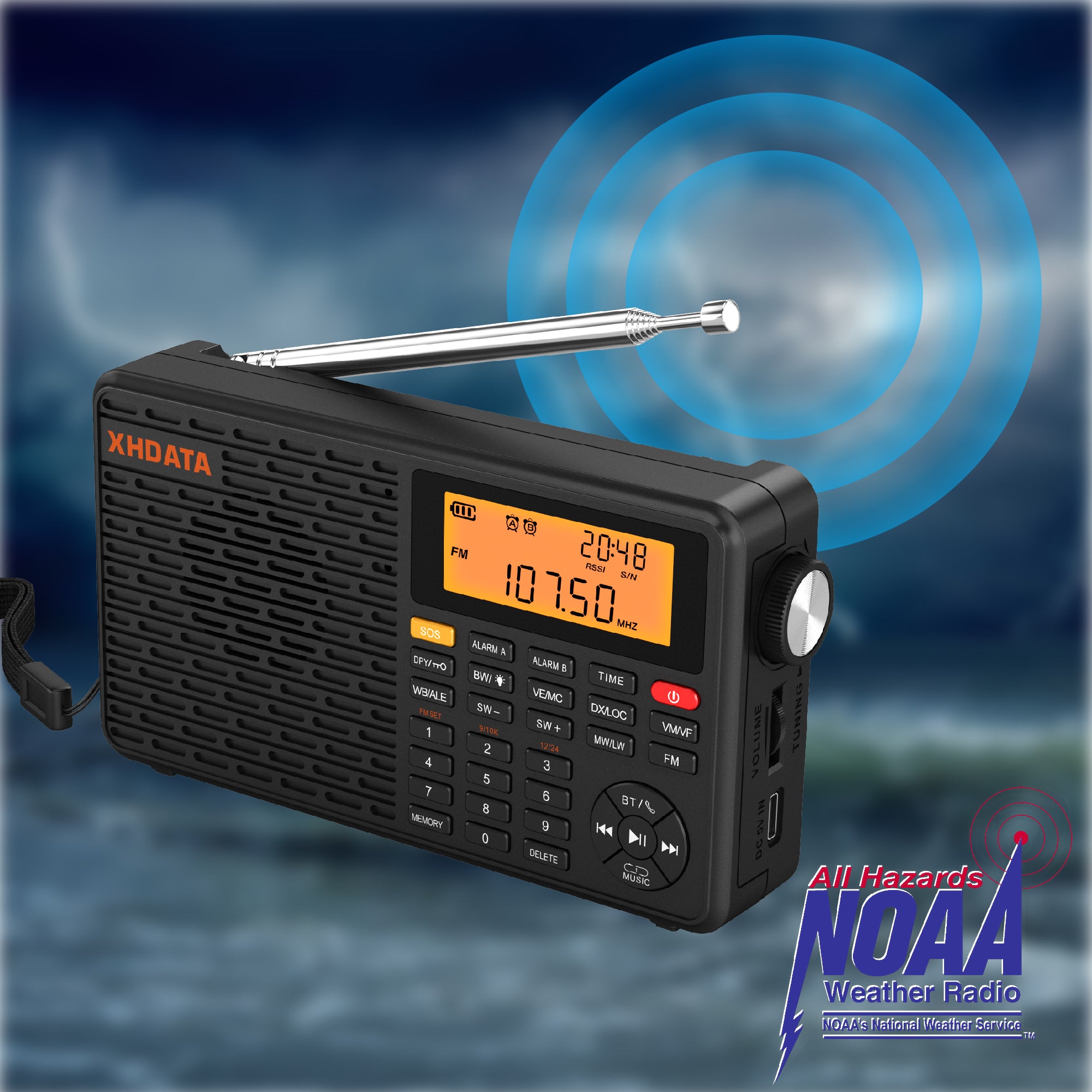

  • NOAA Weather: CH 1 162.400MHz, CH 2 162.425, CH 3 162.450, CH 4 162.475,CH 5 162.500, CH 6 162.525, CH 7 162.550

Please note that the WB band frequency of this product is only supported for use in North America.

• Noise limiting sensitivity
  • FM: (S/N=30dB): > 2 μV
  • LW: (S/N=26dB): >10mV/m
  • MW:(S/N=26dB): >1mV/m
  • SW:(S/N=26dB): > 18μV

• Selectivity
  • FM: 60dB
  • LW: 60dB
  • MW:60dB
  • SW:60dB

• Memory radio frequency
  • FM: 100 pcs
  • LW:100 pcs
  • MW: 100 pcs
  • SW: 300 pcs

More Specification

• Maximum output power: 2.0W
• Headphone impedance: 16-32Ω
• Speaker specification:40mm (dual NdFeB 16 core) 4Ω /5W
• TF card : support : 32G
• Audio playback format: MP3 / WMA / WAV /FLAC

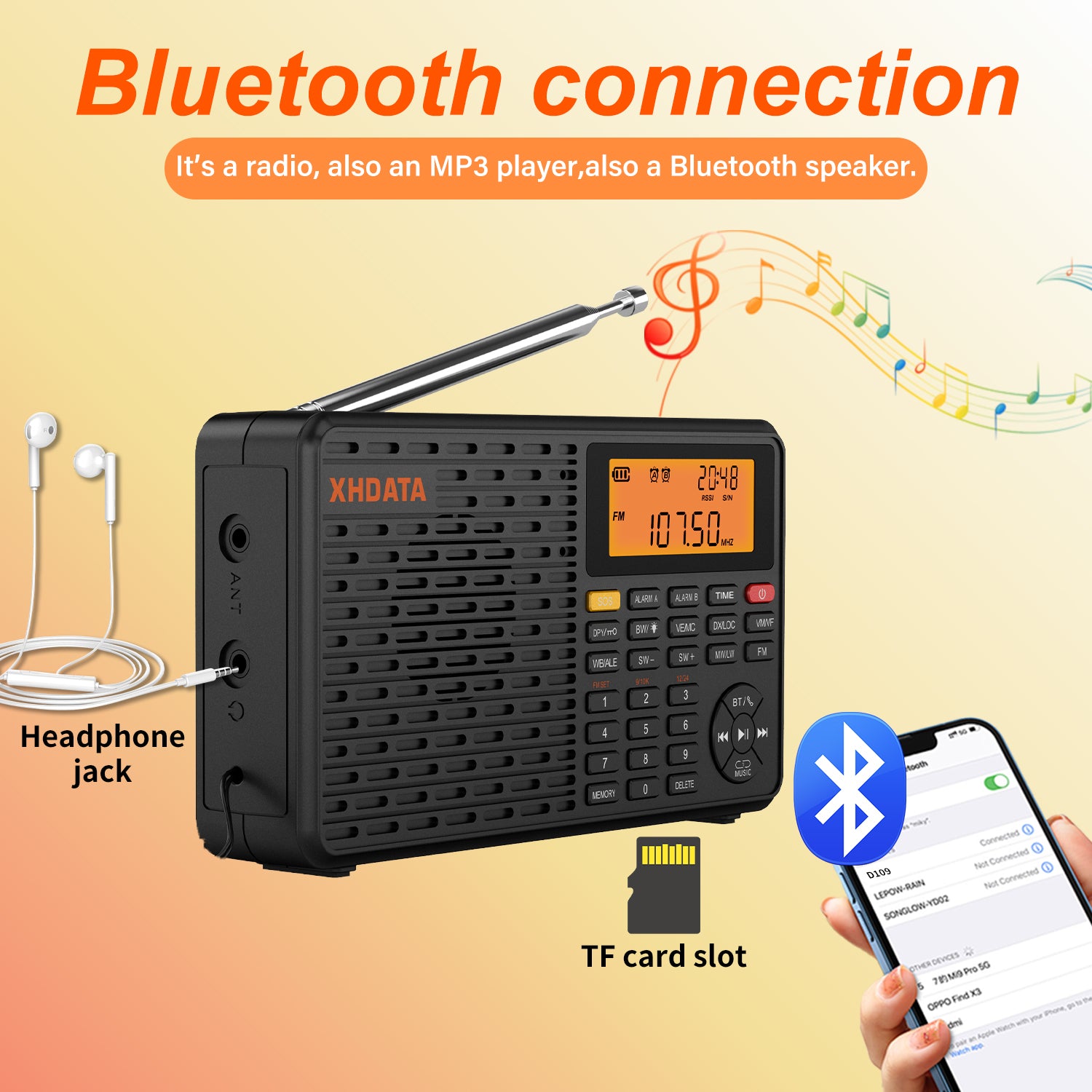

• Bluetooth transmission distance: 10M

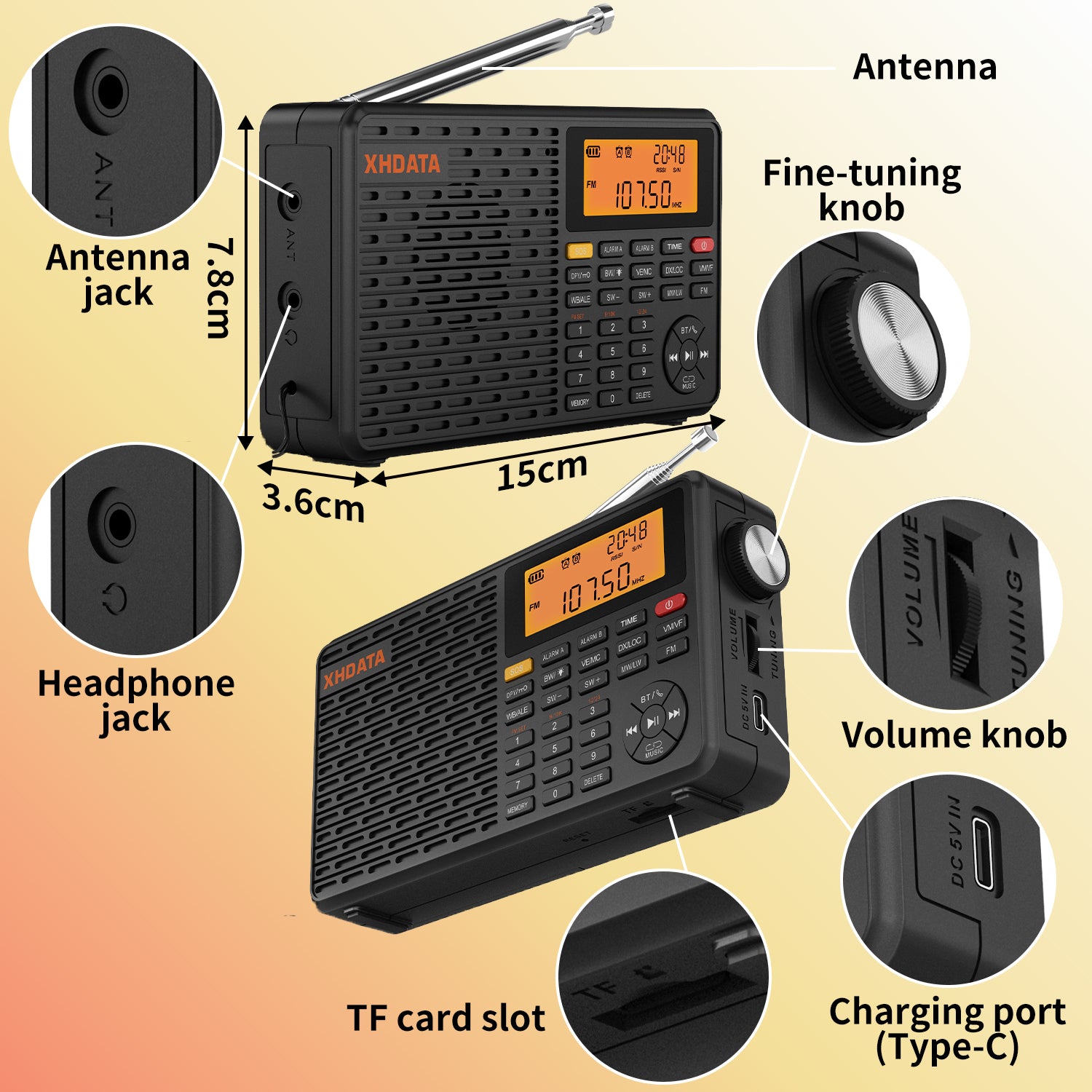

• With antenna jack ---Supports plugging in an external antenna to improve FM SW!
• With 3.5mm headphone jack---Enjoy radio anytime and anywhere

Unit size

• 166 x 92 x 47 mm (W x H x D)
•  Including battery 289g（ Excluding battery 237g ）
• （Small size, easy to carry, very suitable for home, travel, camping! Let you enjoy the wonderful listening time at any time）

Package Contents

• 1 x XHDATA D-109WB Radio (with rechargeable 18650 battery)
• 1 x Type-C charging cable
• 1 x English manual

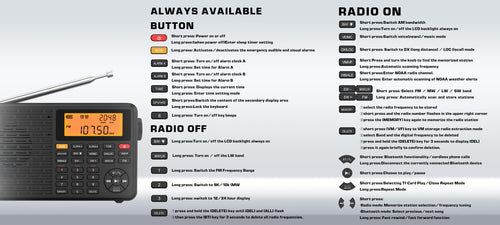

Easy Operation Guide

With its comprehensive range of features and high-performance capabilities, XHDATA D-109WB FM/MW/LW/SWAA Global Band High Performance Professional Radio is a reliable companion for outdoor adventures, emergency situations, and everyday listening.
